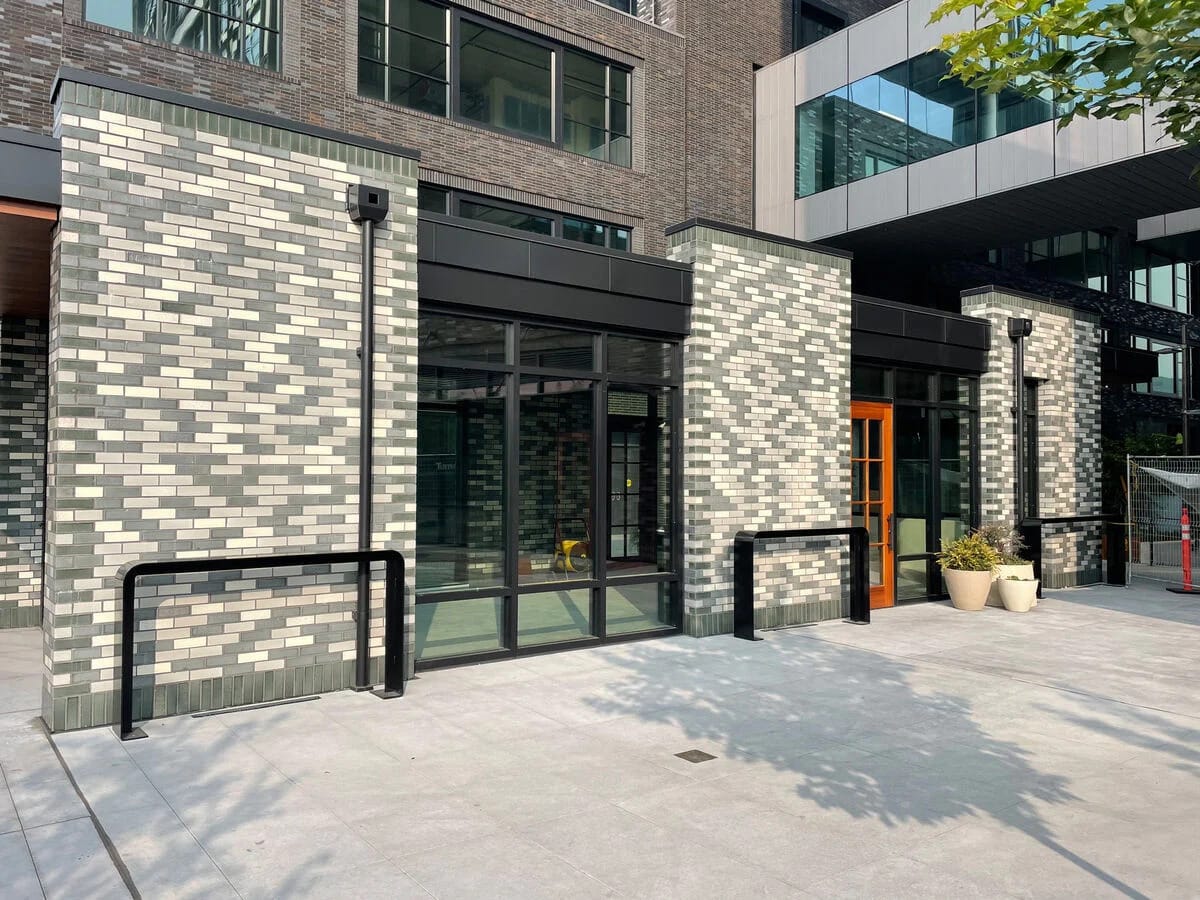

Commercial Brick Veneer Systems Built for Raleigh Properties
Commercial brick veneer is a practical way to get the look and durability of masonry without the weight and cost of full-thickness brick. For retail centers, office buildings, schools, and multi-family projects in Raleigh, a properly engineered veneer system can protect the structure, control moisture, and meet design standards while staying within budget. Legendary Masonry Raleigh focuses on getting these details right so your façade holds up to North Carolina’s heat, humidity, and sudden storms.
A commercial veneer system is not just a layer of brick. It is a coordinated assembly that includes the backup wall, anchors, air and vapor barriers, insulation, cavity drainage, flashing, and the brick itself. When any of those are chosen poorly or installed incorrectly, you see problems like efflorescence, bowing walls, leaks at windows, and early cracking. We design and install veneer systems that are specific to each building type, taking into account local codes, wind loads, and day-to-day use so you are not paying for features you do not need or cutting corners that matter.
Our crews are familiar with both new construction and retrofit work. Whether you are wrapping a new steel-frame structure or adding brick veneer to an older CMU backup wall, Legendary Masonry Raleigh plans the system around the existing conditions, the schedule, and the way the building will actually be used once it is occupied.
How a Commercial Brick Veneer Project Actually Gets Built
Most of our commercial brick veneer jobs in Raleigh follow a clear sequence. First, we review the structural drawings and architectural details to confirm that the backup wall, shelf angles, and support steel are coordinated with the veneer layout. We look closely at control joints, movement joints at floors, and window and door openings because those are the spots that cause costly change orders if missed.
Once the structure is ready, a continuous air and water-resistive barrier is installed on the backup wall. In many Raleigh projects that is either a fluid-applied membrane or a mechanically fastened sheet. We confirm proper lapping at seams, correct terminations at rooflines, and compatibility with sealants. Over that, insulation is added if the assembly requires it to meet energy codes. Rigid mineral wool and polyiso boards are common choices, and the thickness will be dictated by the architect and code requirements.
Next, we install the brick veneer anchors or adjustable ties. Anchor spacing and layout are not guesses. They are based on engineering requirements for wind loads and the specific brick and cavity depth. For taller commercial buildings in the Raleigh area, we coordinate with the engineer to verify tie density at higher wind exposure zones. We also pay attention to tying into both steel studs and CMU backup correctly so the veneer does not flex or rattle in storms.
Finally, bricklaying begins. We string line the courses, maintain consistent bed and head joints, and keep the cavity clear. As we go, we install through-wall flashings, weep systems, and expansion joints at the locations shown in the drawings or recommended by our field experience if the details are unclear. That combination of planning and field judgment is what keeps moisture out and prevents cracking years down the road.
Brick, Anchors, and System Options That Actually Matter
The choices you make on a commercial brick veneer system have real cost and performance impacts. Brick itself is just one line item. Color, texture, and size (modular, utility, Norman, engineer) all affect price and layout. Legendary Masonry Raleigh helps owners and GCs select brick units that match the design intent while respecting the schedule. Some specialty textures or blended colors can carry long lead times that will slow a commercial project if not planned early.
Anchoring systems are another key variable. For steel stud or sheathed backup, we often use adjustable veneer anchors that allow some tolerance for framing variations. For structural CMU, we might specify embedded wire reinforcement and dovetail anchors. On taller buildings or in exposed corners, heavier-gauge anchors and tighter spacing may be necessary to handle wind pressure typical in stronger summer storms.
Cavity depth, usually between 1 and 2 inches, is chosen to balance drainage capacity, insulation thickness, and the practicality of keeping mortar droppings from blocking weeps. We also discuss mortar type with the design team. Type N is common for veneer, but Type S may be used in areas with higher structural demand. The wrong mortar can either be too hard and cause brick spalling, or too soft and degrade quickly.
We also review optional accessories like stainless steel flashing versus galvanized, rope weeps versus cell vents, and different air barrier systems. In the Raleigh climate, we typically recommend materials that tolerate UV exposure and intermittent heavy rains while the building is still open because many commercial schedules require that the façade be installed before the interior is fully dried in.
Local Climate, Scheduling, and Common Problems We Prevent
Raleigh’s weather has a direct effect on brick veneer performance. High humidity, frequent summer storms, and occasional freeze-thaw cycles in winter all influence how we design and install these systems. Legendary Masonry Raleigh plans work around these realities instead of treating them as afterthoughts.
Moisture management is the big issue. Without proper drainage planes, weeps, and flashing, water that gets behind the brick stays there. In our region that leads to mold in the wall cavity, rusty anchors, and staining on the exterior. We focus on clear cavities, correctly lapped flashings at window heads and sills, and enough weep capacity to clear water even during heavy downpours. We also check that the air barrier ties into roof and foundation waterproofing so you do not get hidden leak paths.
Temperature and timing affect mortar curing. In the peak of summer, mortar can dry too fast and lose strength. In winter, freezing temperatures can damage green mortar. We schedule pours and veneer lifts to avoid extreme conditions when possible and use cold weather or hot weather procedures when necessary, such as shading walls, adjusting mix water, or temporary heat.
Common long-term problems we are called to correct on commercial brick veneer in Raleigh include stair-step cracking from missing expansion joints, bulging walls from corroded ties, and leaks at shelf angles where flashing was skipped. We design and install modern systems that prevent these issues by giving the brick room to move, protecting metal components, and providing a clear exit path for water.
Cost Drivers and Budget Planning for Commercial Brick Veneer
Most owners want to know why one veneer bid can be higher than another. The price of commercial brick veneer is shaped by several main factors: wall height and access, complexity of elevations, brick type, structural support needs, and the level of moisture and air control specified.
Taller walls require more staging or mast climbers, and that adds labor and equipment cost. Complex façades with multiple corners, bump-outs, and projections slow down bricklaying compared with flat runs, and that is reflected in labor hours. Brick selection is another big cost driver. A standard modular red brick from a regional plant is more affordable than imported or highly customized blends.
Structural support, such as continuous shelf angles, lintels, and additional support steel at openings, adds to the steel and installation budget. When we price a project, Legendary Masonry Raleigh reads the structural drawings in detail so our bid reflects the real amount of steel handling and coordination required. We would rather identify a support issue before the job starts than surprise you with a change order halfway through.
Finally, air barriers, insulation, and flashing materials vary widely in cost. A full high-performance membrane with thick continuous insulation is more expensive than a basic water-resistive barrier and minimal insulation. We can help owners and general contractors understand what is required by code and what options exist above that baseline, so you can decide where spending more will actually improve performance and where it will not.
What Raleigh Owners and GCs Should Clarify Before Hiring
Before you hire any contractor for commercial brick veneer in Raleigh, there are specific questions worth asking. First, confirm that the masonry team has recent experience with the type of backup wall and air barrier specified for your project. Installing anchors into steel studs, insulated sheathing, or CMU all require different fasteners and techniques. Legendary Masonry Raleigh trains crews on each configuration so the anchors perform as designed.
Second, ask how they handle quality control in the cavity. This includes keeping mortar droppings from blocking weeps, verifying proper flashing slopes, and documenting anchor spacing. We typically assign a foreman responsible for cavity cleanliness and photograph key conditions before they are closed so the GC and owner have a record.
Third, clarify who coordinates with the engineer when field conditions differ from the drawings. Existing buildings often have out-of-plumb walls, inconsistent substrates, or unanticipated openings. We flag those issues early, propose practical fixes, and get written approvals instead of improvising in the field.
Finally, make sure the contractor is insured, licensed for commercial work in North Carolina, and prepared to meet the safety standards that larger Raleigh job sites require. Commercial brick veneer involves scaffolding, material hoists, and coordination with other trades, so clear communication and safety planning are part of the service, not extras. When those pieces are in place, you get a brick veneer system that looks right, drains correctly, and stands up to local conditions for decades.
