Commercial Retaining Walls That Work As Hard As Your Business

Commercial properties in Raleigh have to manage North Carolina clay soils, heavy rain events, and tight site constraints all at once. Commercial masonry retaining walls are not just a landscaping feature. They are structural systems that protect buildings, parking lots, loading areas, and pedestrian spaces from soil movement and drainage problems.

Legendary Masonry Raleigh designs and builds retaining walls specifically for commercial use, meaning we plan for vehicle loads, foot traffic, long-term durability, and local code compliance from the start. Whether you are stabilizing a steep bank beside a parking lot, creating level terraces for building pads, or replacing a failing railroad tie wall, we focus on performance first, appearance second, and cost efficiency across the entire life of the wall.

Our crews are familiar with local inspectors, City of Raleigh and Wake County requirements, and typical soil conditions across the Triangle. That practical experience helps us flag issues early, propose realistic solutions, and keep your project moving without surprises.

How We Plan and Engineer Commercial Masonry Retaining Walls

Every successful commercial retaining wall starts with investigation and engineering, not just picking a block color. Legendary Masonry Raleigh begins by reviewing your site plan, grading plan, and any available geotechnical reports. If those are not available, we can coordinate basic soil testing or work with your engineer to confirm soil bearing capacity and drainage characteristics.

For walls over 4 feet in Raleigh or where there are surcharge loads like parking, drive aisles, or buildings near the top of the wall, a licensed engineer typically must provide signed drawings. We supply accurate field measurements, confirm elevations with laser levels, and identify nearby utilities so the design reflects real site conditions.

We then help you and your design team choose the right wall system. This might be a segmental concrete block wall with geogrid reinforcement, a cast in place concrete wall with a masonry veneer, or a hybrid solution where we combine shorter gravity walls with grading changes to control costs. We discuss design life, maintenance expectations, and future expansion so the finished wall does not limit your site’s potential.

Before construction, we produce a buildable layout that resolves corner conditions, step downs, and tie-ins to sidewalks, curbs, and structures. That extra planning significantly reduces field changes and schedule delays once equipment is on site.

Construction Process: What Actually Happens On Your Site

On a commercial site in Raleigh, coordination and safety are just as important as masonry skills. Legendary Masonry Raleigh starts by scheduling utility locates and setting up a clear access path for equipment and material deliveries that does not interrupt your operations more than necessary.

We excavate to the depth required for the wall’s base and reinforcement zone, going beyond the visible height of the wall. Soft or unsuitable soils are removed and replaced with compacted stone so the wall has a stable foundation. Compaction is verified in lifts, typically 6 to 8 inches, using plate compactors or rollers depending on the wall size.

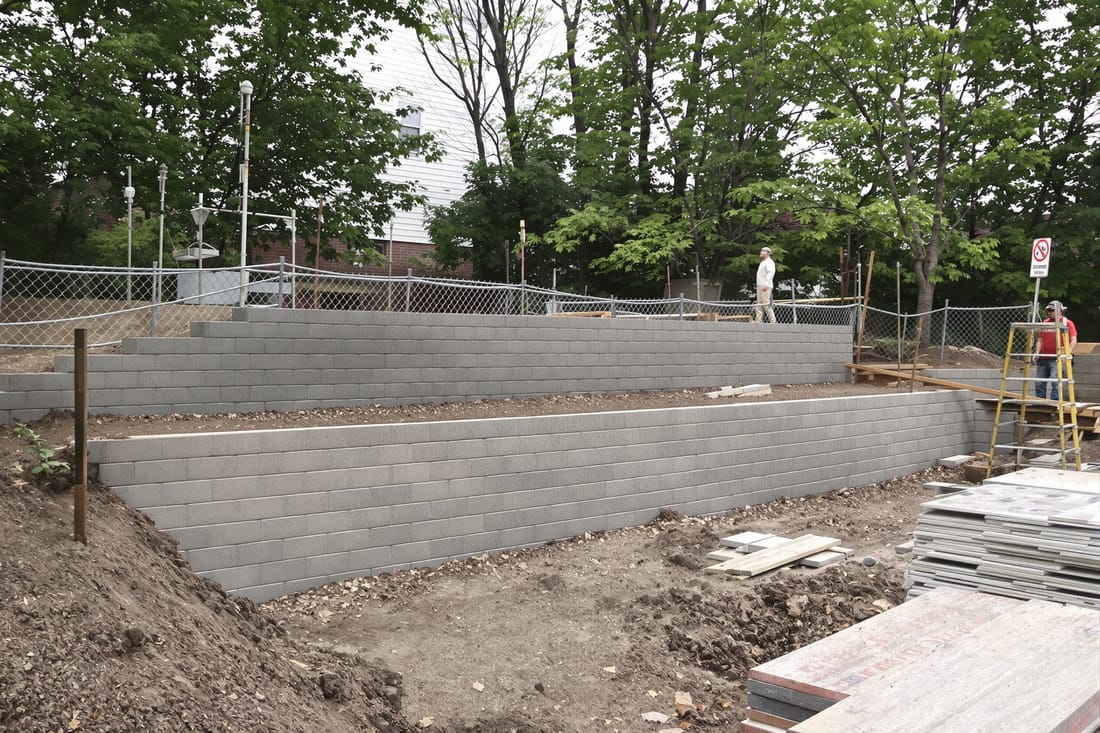

For segmental masonry retaining walls, we install a base of open graded stone, screeded to an exact thickness. The first course of block is carefully leveled front to back and side to side, since any error on the bottom course will multiply as the wall goes higher. As we stack additional courses, we stagger joints and install geogrid reinforcement at engineered intervals, extending it back into compacted structural fill that locks the wall into the slope.

Drainage is installed directly behind the wall using perforated pipe, clean stone, and filter fabric to prevent clogging from Raleigh’s red clay. For cast in place or poured walls, we set forms, place rebar, and pour concrete to the specified strength, then later add a masonry or stone veneer if desired. Throughout, we coordinate inspections at the milestones required by the jurisdiction, so your project passes without delays.

Materials and Design Options That Fit Commercial Properties

Commercial masonry retaining walls do not have to look industrial or out of place. Legendary Masonry Raleigh offers material and finish options that match office parks, multifamily developments, retail centers, and institutional campuses throughout the Triangle.

Common structural options include segmental concrete block systems rated for commercial loads, cast in place concrete cores with masonry veneer, and occasionally modular precast systems for very tall or heavily loaded applications. For visible faces, you can choose from architectural concrete block in multiple colors and textures, natural stone veneer for a more upscale or traditional look, or brick that matches existing buildings on your site.

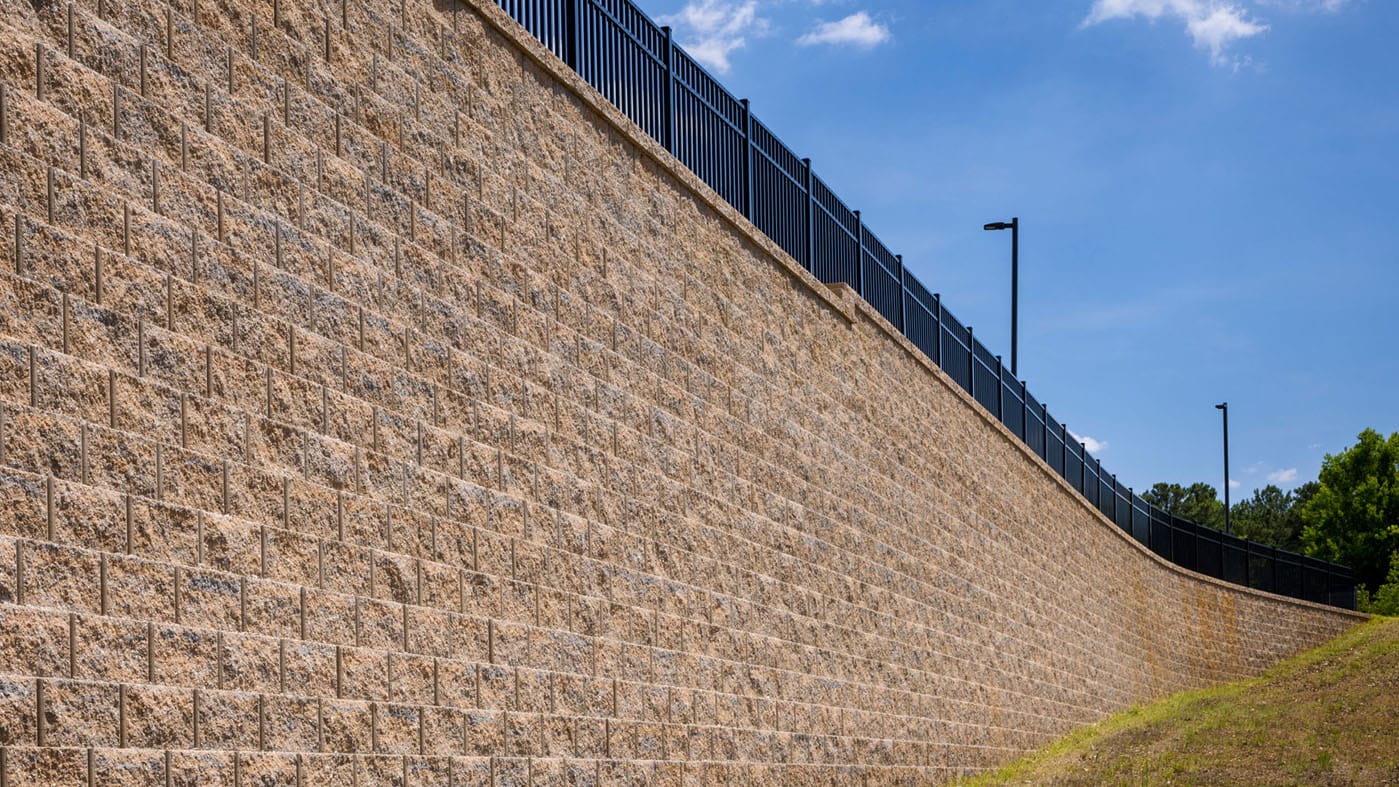

Design details make a big difference in how the wall functions and how it is perceived. We can integrate guardrails at the top of high walls, coordinate with metal fabricators for custom railings, and form concrete caps or install precast caps that help shed water and protect the face of the wall. Where pedestrians are nearby, we may recommend step terraces rather than one tall wall, which improves safety and allows for planting pockets.

Lighting conduits, signage foundations, and irrigation sleeves are often overlooked during wall construction. We plan for these elements early, embedding conduits or leaving access points so you do not have to cut into a new wall later to add site improvements.

Cost Drivers, Schedule, and Raleigh-Specific Considerations

Budgeting for commercial masonry retaining walls requires more than a per square foot guess. The largest cost drivers are wall height, total length, soil conditions, required engineering, access for equipment, and the type of finish materials you choose. A tall wall with geogrid reinforcement and engineered design will cost more upfront than a short gravity wall, but it may be the only safe way to retain a steep change in grade near a drive aisle or building.

In Raleigh, the red clay and variable fill soils on some developed sites can increase excavation and base preparation costs if we encounter unsuitable material. Limited access behind existing buildings or near property lines can also increase labor, as smaller equipment and handwork are often required.

Weather and season play a role in planning. Fall and early winter are often ideal for major retaining wall work in Raleigh, when heavy summer thunderstorms are less frequent but the ground is not yet saturated from prolonged winter rain. We can build year round, but for large projects we will discuss how weather risk might affect schedule and temporary stabilization.

Legendary Masonry Raleigh works with general contractors, property managers, and owners to sequence retaining wall construction around other site work. Often, it makes sense to build walls just after rough grading and underground utilities, but before final paving and landscaping, so access is easier and repairs are minimized. We provide clear schedules, staging plans, and material delivery timelines so your broader project plan stays on track.

Common Problems We Solve and How To Get Started

Many commercial clients call us when a railroad tie or timber wall is bowing, cracking, or leaking soil onto parking lots and sidewalks. In Raleigh’s climate, wood systems deteriorate quickly, especially where water collects. Legendary Masonry Raleigh evaluates whether the existing wall can be temporarily stabilized, then designs a masonry or concrete replacement that handles both current and future loads.

Other frequent issues include walls that were built without proper drainage, causing hydrostatic pressure, or walls that were not designed for the current use of the site, such as a new drive aisle or added parking above the wall. In these cases, we may recommend partial demolition, new geogrid reinforcement, additional drainage, or a completely new wall system that meets current standards. Our goal is to provide a permanent fix, not another short term patch.

If you are planning a new commercial development or modifying an existing site, we recommend involving a retaining wall contractor before the final grading plan is locked in. Sometimes small adjustments to slopes or elevations can significantly reduce wall height and cost. When you contact Legendary Masonry Raleigh, we will ask for site plans, elevations, and any existing drawings or soil reports. From there, we can provide a preliminary approach, budget range, and timeline.

Once you are ready, we move into detailed estimating, formal engineering if required, permitting coordination where needed, and a clear construction schedule. Throughout the process, you will have a direct point of contact who understands both the structural requirements of commercial masonry retaining walls and the practical realities of keeping your property or jobsite running smoothly.
